SJX-60200 Flat screen printing machine with conveyor belt£º
Introduction:
Flat screen printing machine with conveyor belt is widely used in the printing of daily necessities such as handbags, non-woven fabrics, leather, PVC film, glass, acrylic and a series of flat sheet products.
Notes:
1.When the machine needs to be moved or repaired, the power and gas sources must be cut off;
2. When adjusting or cleaning the oil scraper, please follow the steps;
3. When adjusting the machine, it can only be operated by one person;
4.Pay attention to ventilation in the production workshop and install an air circulation system;
5. Enhance fire prevention awareness and equip with firefighting equipment.
Technical parametes£º
|
Name |
Flat screen printing machine with conveyor belt |
|
Model |
SJX-60200 |
|
Color |
1 color |
|
Print mode |
Semi automatic mode, fully automatic mode |
|
Counting |
Yes |
|
Print speed |
1000-1800 pcs/hour |
|
Conveyor belt width |
600MM |
|
Coveyor belt length |
2000MM |
|
Servo drive |
Servo motor |
|
Table air suck |
Yes |
|
Max screen frame |
600MM*800MM |
|
Max print area |
350MM*550MM |
|
Precision |
¡À 1MM |
|
Material thickness |
80MM |
|
Screen frame lift stroke |
125MM |
|
Print head lift stroke |
40MM |
|
Squeegee/Flood bar lift stroke |
32MM |
|
Left/Right drive |
Step motor |
|
Up/down drive |
Pneumatic Cylinder |
|
Control system |
Touch screen+PLC |
|
Voltage |
220V,50Hz |
|
Control voltage |
24V DC |
|
Power |
About 1.3KW |
|
Air pressure |
0.6-0.8Mpa |
|
Machine size |
About 2000MM*850MM*1600MM |
|
Machine weight |
About 300KG |

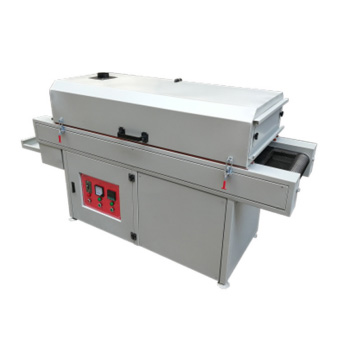

Tunnel conveyor dryer£º
Application£º
Suitable for fast drying solven ink and some other material which can dry quickly. Such as : paper products,chemical products,glass,wooden board,PVC and Metal plate.
Technical parametes£º
|
Model |
IR600 |
|
Conveyor belt width |
600mm |
|
Inlet length |
250mm |
|
Outlet length |
250mm |
|
Heat zone length |
1500mm |
|
Temperature |
Normal temperature-120¡æ |
|
Height of tunnel |
100mm |
|
Conveyor belt speed |
1-10m/min |
|
Total power |
About 4.5KW |
|
Machine length |
2000mm |
